Tomcat Silver Arrow

From £2,439.00*

The Silver Arrow is an innovative, agile, multi-geared road trike for children and young people looking for a lower, more secure riding position. Its low-sitting position creates an easy transfer and stable ride, whilst the natural angle of the backrest is better for posture and relieves neck strain issues often encountered with more recumbent designs.

*Not model shown.
Read More
Yet the stand-out feature of the Silver Arrow is its transportability. It is the only multi-geared trike capable of quickly and simply splitting into two whilst its quick release wheels and removable seat options, make it even easier to fit in an average sized family car. The Silver Arrow can also be enhanced by electric power assistance. All these features are designed to provide maximum freedom, function, and independence for anyone who refuses to be beaten by strength, travel or mobility issues.
Read More

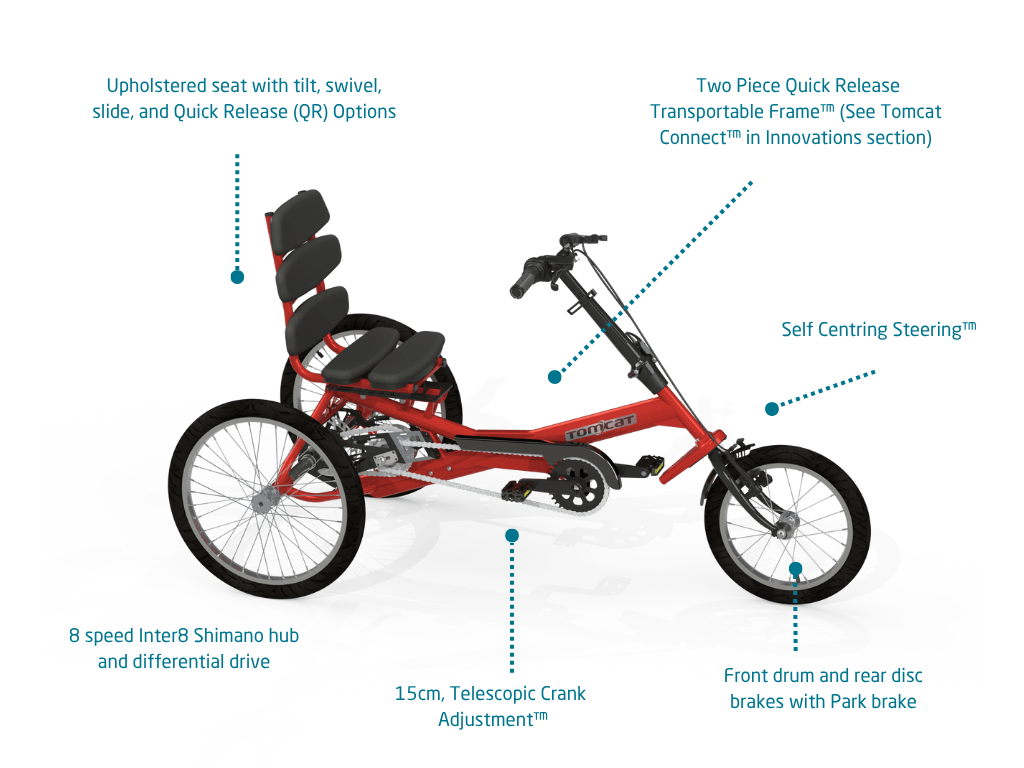

Features

  • Suitable for adults and young persons aged 7 – 14 years (approx)
  • Ergonomically engineered for good posture
  • 8 Speed, Shimano Inter8 Hub drive
  • Differential drive to rear wheels
  • Front drum and rear disc brakes
  • Self Centring Steering™
  • Silver Arrow Basic – £2439.00
  • Silver Arrow Basic Transportable – £3357.00
  • Silver Arrow Basic with Electric Power-Assist (EPA) – £4566.00
  • Silver Arrow Basic Transportable with EPA – £5662.00
Read More

Options

  • 2 Piece Quick Release Frame™ (Transport Feature)
  • Quick Release Seat™ (Transport Feature)
  • Pitstop, Quick Release Wheels™ (Transport Feature)
  • Tomcat Connect (Transport Feature) Splits and reconnects gear, brake and electronic controls with the 2 Piece Quick Release Frame
  • Left and Right, self locking Swivel Seat™
  • 12.5cm Sliding Seat ™
  • Tilting Backrest
  • 15cm Telescopic Crank Adjustment™
  • 36v Battery Power Assist 15.5mph (28kph)
  • 36v Bionic Buddy Battery Powered Drive 3mph (5kph)
  • Multi-User Special Edition™ Arrow (Sliding Seat, Swivel Seat and Telescopic Cranks, combo)
  • Full, foot, legs, pelvis, waist, trunk, arms, head and hands, support accessories
  • Customizable Height Backrest
  • Basket and Quick Release Carrier
Read More
“Just wanted to say how delighted we are with Alexander's new trike. Despite the cold and snowy weather we have had a lovely couple of rides. Alexander has been pedalling himself which is so good for his leg muscles. He loves it and has new sense of independence and achievement.”
Elizabeth B

Innovations

We believe the Tomcat Silver Arrow is the most important advance in children and young people mobility trikes for years – thanks to its astonishing versatility and number of key unique innovations.

It’s ideal for anyone looking to prolong or enhance mobility regardless of disability, learning difficulties or physical barriers.

For a comfortable ride and easy access

The Silver Arrow’s upholstered, low seating is in the ideal position for both access and posture, making it very easy to use and comfortable across long distances.  By including Sliding and/or Swivel Seat™ options, a rider can turn the seat to one side for access, sit, and then smoothly swivel and slide the seat into its ideal position.

For easy transport and storage

The two part frame means the Silver Arrow can be taken apart, packed away and assembled again in seconds.  The Quick Release Frame™ has been deliberately designed to be easy to manage independently.  By placing the trike on a stand before lifting the interlock and release levers it is completely stable, putting you in control throughout.

For a revolution in mobility

Tomcat’s newest innovation allows the Silver Arrow to split gear, braking and electronic controls quickly and easily at a single point.  The Connect System™ is integral with the Quick Release Frame™.  When the frame is separated, the handlebar mounted controls simultaneously disconnect in one smooth movement.  Reassembling the trike seamlessly rejoins all connections, controls and functions.  This is a truly groundbreaking invention which enables us to combine familiar cycling technology with a fully transportable and versatile trike.

For multi use environments

The ‘Special Edition’ option adapts this trike for multi-use environments by combining  a sliding and swivelling seat with telescopic cranks.  This allows rapid adjustment to fit any rider even whilst they are seated.  As a result, setting up is quicker and less stressful for both the rider and technician.

Technical Specification

General Specification (Base Model)

Approximate Minimum User Age7 years
Approximate Maximum User Age14 years
Approximate Minimum User Height115cm
Approximate Maximum User Height160cm
Maximum User Weight100kg

Technical Spec

Overall Length178cm
Overall Width74cm
Seat Height to Ground * 60cm
Overall Height to Ground *98cm to 110cm
Wheel Size Front / Rear16” x 20”
Trike Weight *24kg
Crank Length115/125mm
Gearing 8 speed Shimano Inter8 HubYes
Front caliper brake / rear discYes
Optional Pedal AssistOff-road or over 14 years
Motor power (continuous rating)250watts
Sports ControlNo
Standard ControlYes
ControllerTwist Grip
Battery power 9Ah or 11.4Ah
Horn – 140 Db “Hornit”Yes
Differential Drive to Rear Wheels (Power Assist Drives)Yes
